It is magic. It gets standing ovations. It changes electrical design...forever  for the better...

And now, the Incredible 1 Line Diagram is a finalist in "Consulting Specifying Engineers" Product of the Year contest for 2019.

Our patented technology calculates the values for the Incredible 1 Line Diagram with PowerCalc's 7+ million equations automatically designing the entire power distribution system in a building, all in compliance with the National Electrical Code.

The Incredible 1 Line Diagram is best in class: fully graphic, automatic and simultaneously generated. Use a split / double screen and watch your Incredible 1 Line Diagram generate in sync with your design. So now, for the first time, you have a visual reference throughout the design process.

With PowerCalc, changes are automatic and instantaneous upstream and downstream across your design, and the Incredible 1 Line Diagram keeps up with every input. Your power distribution design is always up to the minute ending fuss over this tedious task at the end of a project.

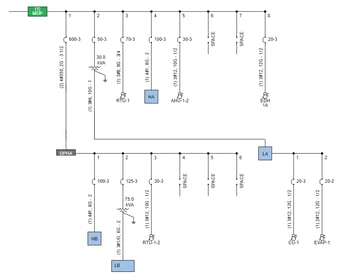

The Incredible 1 Line Diagram is a simplified notation representing a single or three phase power system required for posting in commercial buildings and for building permits. All electrical elements are indicated with standard symbols: distribution panel, panels, building equipment, circuit breakers, transformers, disconnects, buss bars and conductors. The block diagram indicates the flow of power between the electrical elements showing feeder sizes, trip /amp, fault current analysis, equipment AIC and % Voltage Drop.

In new construction, the Incredible 1 Line Diagram summarizes the entire power distribution system. In renovation, the Incredible 1 Line Diagram is the starting point to determine the project's impact on the existing power distribution system.

We need your vote. PowerCalc is about electricals designing for electricals.  We know what you need because it is what we need. We are up against major players: Schneider, Eaton and Lutron.

So, please take the time to vote for us.  You can check out the Incredible 1 Line Diagram for free below. It's easy to vote...here are the steps:

1. Go the showcase: csemag.com/NP4E

2. Create an account at the register button on the menu bar or sign into your existing account

3.  Select Product Voting from the menu bar

4.  At the Product Award Voting Page, select Consulting Specifying Engineer 2019 Product of the Year

5. Scroll to the last category: System Software, Controls and Management Tools

6. Vote for the Incredible 1 Line Diagram - PowerCalc
